Raindrop® Ultra Nozzle

FEATURES:

  • * Chemical resistant materials
  • * Wide 1100 angle
  • * Fits all standard nozzle bodies
  • * Short, 1″ long
  • *ISO color-coded
  • * Sizes 1.5 – 8

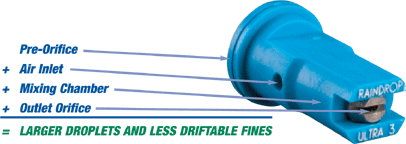

  • *Air intake design



BENEFITS:

  • * Produces 72% less driftable fines than conventional nozzles
  • * Spray in higher wind conditions
  • * Protect neighboring crops and environment
  • * Spray closer to target wide angle
  • * Apply more chemical on target
  • * More penetration with larger drops

Raindrop Ultra®
Plus Part Number

Size

100032-1

1.5-1100
100032-2 2-1100
100032-3 3-1100
100032-4 4-1100
100032-5 5-1100
100032-6 6-1100
100032-8 8-1100

RAINDROP ULTRA® CAPACITY CHART

Nozzle Tip Number

Pressure
(psig)

Capacity
1-Nozzle
(GPIM)

Capacity
1-Nozzle
(oz/mn)

20" Spacing
Gallons per Acre (GPA)
Based on Water

30" Spacing
Gallons per Acre (GPA)
Based on Water




ISO
Color

4
MPH

5
MPH

6
MPH

7.5
MPH

10
MPH

4
MPH

5
MPH

6
MPH

7.5
MPH

10
MPH




Raindrop Ultra®
1100 - 1.5
(100 mesh)

 30 .13 16.6 9.6 7.7 6.4 5.1 3.9 6.4 5.1 4.3 3.4 2.6
40 .15 19.2 11.1 8.9 7.4 5.9 4.5 7.4 5.9 5.0 4.0 3.0
50 .17 21.8 12.5 10.0 8.3 6.6 5.0 8.4 6.7 5.6 4.5 3.4
60 .18 23.0 13.6 10.9 9.1 7.3 5.5 8.9 7.1 5.9 4.8 3.6
  80 .21 26.8 6.9 5.5 4.6 3.7 2.7 10.4 8.3 6.9 5.5 4.1

Raindrop Ultra®
1100 - 2
(50 mesh)

 30 .17 21.8 12.9 10.3 8.6 6.9 5.1 8.6 6.9 5.7 4.6 3.4
40 .20 25.6 14.8 11.9 9.9 7.9 5.9 9.9 7.9 6.6 5.3 4.0
50 .22 28.2 16.6 13.3 11.1 8.9 6.6 11.1 8.9 7.4 5.9 4.4
60 .24 30.7 18.2 14.5 12.1 9.7 7.3 12.1 9.7 8.1 6.5 4.8
  80 .28 35.8 9.3 7.4 6.2 4.9 3.7 13.9 11.1 9.2 7.4 5.5

Raindrop Ultra®
1100 - 3
(50 mesh)

 30 .26 33.3 19.3 15.4 12.9 10.3 7.7 12.9 10.3 8.6 6.9 5.1
40 .30 38.4 22 17.8 14.9 11.9 8.9 14.8 11.9 9.9 7.9 5.9
50 .34 43.5 25 19.9 16.6 13.3 10.0 16.8 13.5 11.2 9.0 6.7
60 .37 47.4 27 22 18.2 14.5 10.9 18.3 14.6 12.2 9.8 7.3
  80 .42 53.7 14 11.1 9.3 7.4 5.5 21 16.6 13.9 11.1 8.3

Raindrop Ultra®
1100 - 4
(50 mesh)

 30 .35 44.8 26 21 17.1 13.7 10.3 17.1 13.7 11.4 9.1 6.9
40 .40 51.2 30 24 19.8 15.8 11.9 19.8 15.8 13.2 10.6 7.9
50 .45 57.6 33 27 22 17.7 13.3 22 17.7 14.8 11.8 8.9
60 .49 62.7 36 29 24 19.4 14.5 24 19.4 16.2 12.9 9.7
  80 .57 72.9 18.7 15.4 12.6 10 9.3 28 23 18.8 15 11.5

Raindrop Ultra®
1100 - 5
(50 mesh)

 20 .43 55.0 32 26 21 17.1 12.9 21 17.1 14.3 11.4 8.6
40 .50 64.0 37 30 25 19.8 14.9 25 19.8 16.5 13.2 9.9
50 .56 71.7 42 33 28 22 16.6 28 22 18.4 14.8 11.1
60 .61 78.1 45 36 30 24 18.2 30 24 20 16.2 12.1
  80 .71 90.8 23.1 18.6 15.5 12.3 9.3 34.6 27.8 23.2 18.4 14

Raindrop Ultra®
1100 - 6
(50 mesh)

 30 .52 66.6 39 31 26 21 15.4 26 21 17.1 13.7 10.3
40 .60 76.8 45 36 30 24 17.8 30 24 19.8 15.8 11.9
50 .67 85.8 50 40 33 27 19.9 33 27 22 17.1 13.3
60 .73 93.4 55 44 36 29 22 36 29 24 19.4 14.5
  80 .84 107.5 28 22.2 18.6 14.8 11 42 33.2 27.8 22.2 16.6

Raindrop Ultra®
1100 - 8
(500 mesh)

 30 .69 88.3 51 41 34 27 21 34 27 23 18.3 13.7
40 .80 102.4 59 48 40 32 24 40 32 26 21 15.8
50 .89 113.9 66 53 44 35 27 44 35 30 24 17.7
60 .98 125.4 73 58 48 39 29 48 39 32 26 19.4
  80 1.14 145.9 37.4 30.8 25.2 20 18.6 56 46 37.6 30 28
